Featured house
See the project results
See the finished house, recorded design steps and model quantities. The editing sequence is accelerated.
One-minute project demo · View-only 3D model
Open the house in 3DBrowser-based timber frame design
Fast timber frame design. No CAD learning curve.
Right in your browser. Use the laptop you already have. Draw the frame, add the roof and get the timber list.
- No installation
- Simple wall and roof tools
- 2D, 3D and quantities together
View the 3D demo without an account. Join the waitlist for an invitation when editor access opens.
This model was created in about 2 minutes.
From the same project
One house. Its quantities. A piece in detail.
See the structure, model quantities and a stud detail from this 8 × 10 m house.
01

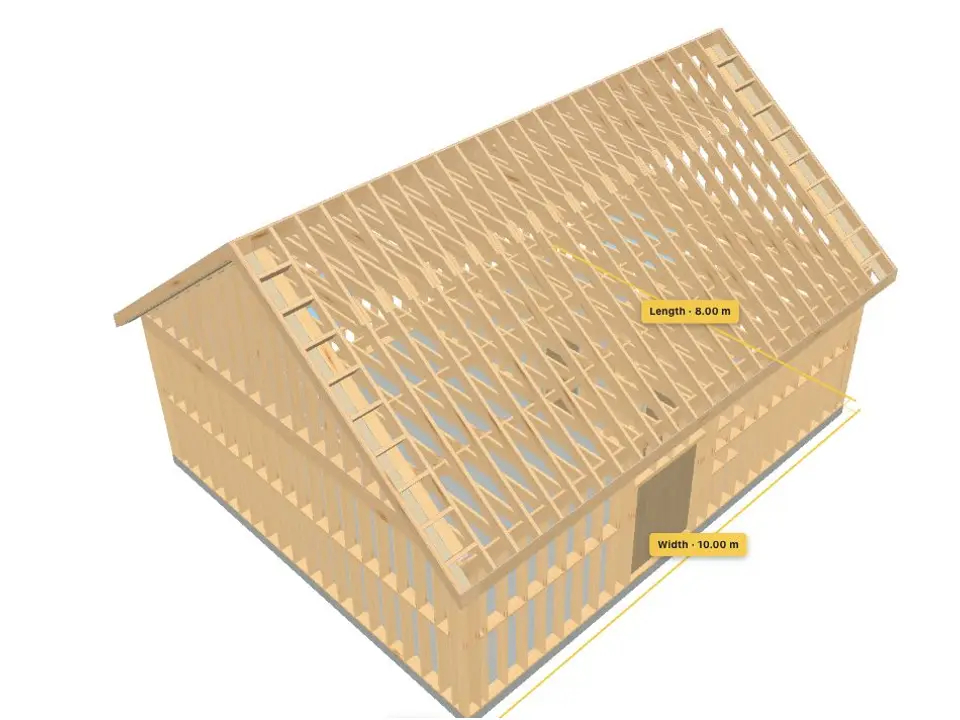

Inspect the frame
8 × 10 m≈ 26′ 3.0″ × 32′ 9.7″
02
See the model quantities
- Pieces in the model
- 615
- Total length
- 1,411.52 m≈ 4,630.97 ft
- Total volume
- 13.798 m³≈ 487.27 ft³
The total includes four soffit panels. These are model quantities, not an order list.
03
Inspect a piece
- Studs in this group
- 99
- Length per stud
- 2,865 mm≈ 9′ 4.8″
- Section
- 45 × 195 mm≈ 1.77 × 7.68 in
Planning example. The complete cut-list export for this house remains unavailable until further checks are complete.
Live FrameVerk projects
Explore two real timber-frame projects.
See the model and its quantities. Open either project in the view-only 3D viewer. No account is required.

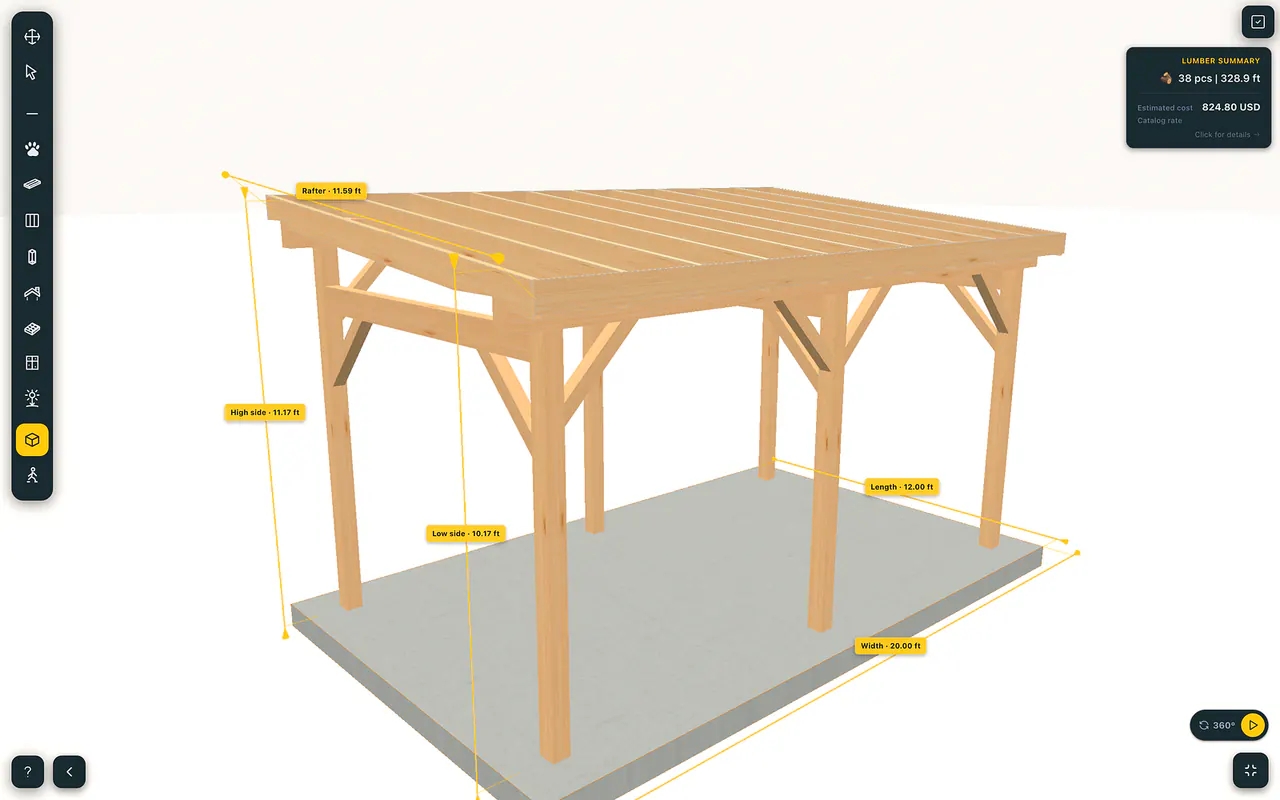

Timber-frame pavilion
Inspect a clear post-and-beam pavilion.
Explore the exact dimensions, timber total, and 3D structure in the existing pavilion demo.
View only · No account required · Live project link
Open the pavilion in 3DHow FrameVerk works
Four simple steps, one project.
Design the frame, add the roof, check the timber and cost, then share the latest version—without switching between apps.
01
Design the frame
Start with the building shape, then add the main timber parts.
- Walls, doors and windows, floors, posts and beams
- Switch between the floor plan and 3D view anytime
02
Add the roof
Choose the roof shape and main measurements. FrameVerk lays out the pieces.
- Set the slope, direction, spacing and overhang
- See the roof structure in 3D before moving on
03
See what timber you need
Get a clear list of pieces, sizes and cuts, then add your timber prices.
- Quantities, sizes, lengths and required cuts
- Choose the timber lengths you buy and allow for saw cuts and waste
- See how much timber to buy and the estimated cost
04
Share or print
Let someone review the latest 3D project or take the timber list with you.
- Send a view-only 3D link—no account needed
- Let others inspect the shared model; turn off the link anytime
- Download a spreadsheet or print the cut list as a PDF
Also included: metric and imperial units, online saves, project copies and earlier versions. Sun Study shows sunlight and shadows for the date and time you choose.
Explore the connected workflow
Solutions
Start with the result you need
Start with the model if you need a material list. Use the free calculators if you already have quantities.
Timber Frame Design Software
Design the frame in 2D and inspect the same structural model in 3D.
Read the guideTimber Frame Cut List Generator
Generate timber quantities and cut information from the members in your model.
Read the guideTimber Frame Lumber Cost Estimator
Use model quantities, stock lengths, and supplier prices for an early cost estimate.
Read the guideL-Shaped Timber Frame Roof Design
Design and inspect an L-shaped roof with the supporting frame below it.
Read the guideHave quantities already? Start without an account
Calculate timber volume, weight and cost
Enter dimensions or a known volume. For example, 20 pieces of 50 × 150 mm timber at 3.6 m give 0.54 m³.
Calculate A1–A3 embodied carbon
Enter a material inventory. The result shows product-stage emissions, with the factor sources and calculation limits.
Built for
For people planning a real timber-frame build.
Timber-frame builders
Design the frame, review the roof and prepare the timber information without rebuilding the same job in several tools.
Designers and project teams
Keep design choices, measurements, timber and costs in one project as the design changes.
Serious owner-builders
See the building in 2D and 3D, understand the timber needed and make better-informed choices before work starts.
Common questions
The basics, before you join.
Can I try FrameVerk without an account?
You can explore the public 3D demos without an account. They are view only. Editor access is by invitation through the waitlist.
Do I need to install anything?
FrameVerk runs in a modern desktop browser. You do not need to install an application. Use a desktop computer to design projects.
What will FrameVerk cost?
Subscriptions are not active yet. Paid plans will be announced later, and joining the waitlist requires no payment card.
Can I use FrameVerk as final construction plans?
FrameVerk helps you design the project and prepare timber information. It does not replace the engineer, permits or professional checks required for your build.
Early access
Want to try FrameVerk early?
Join the waitlist for launch news and an invitation when early access opens. No card required.
